Description

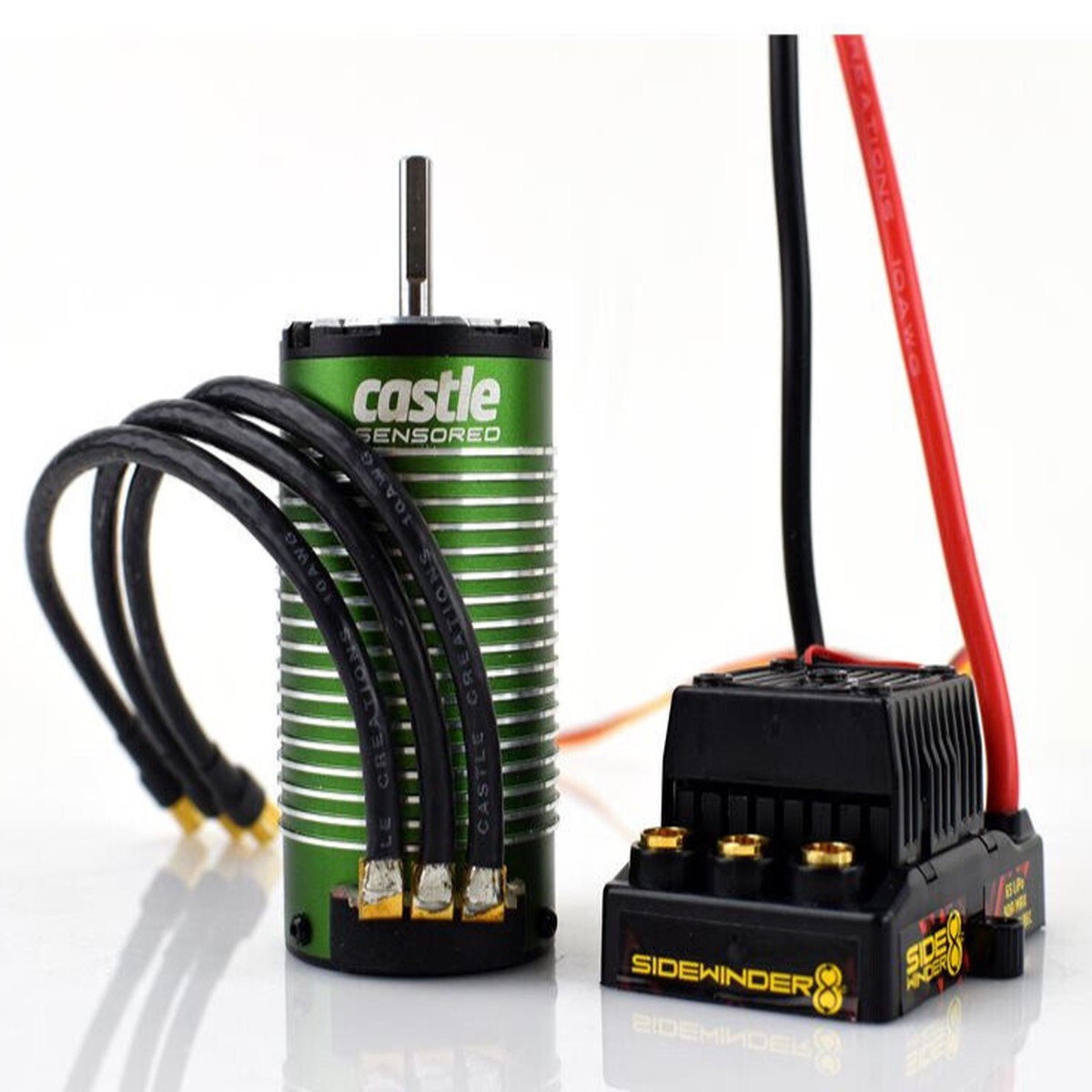

CASTLE CREATIONS 1/8 MOTOR + ESC COMBOWATERPROOF SENSORED HIGH PERFORMANCE SYSTEM2-6S LIPO CAPABLEAffordable Waterproof Brushless Power System!Sidewinder 8th is our sport 1:8 scale waterproof* combo capable of 2-6S LiPo, with an 8 amp peak BEC. This is the perfect upgrade for 1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 11 lbs. It can also work as a great upgrade for some 4WD short course trucks for 3s or 4s operation. It also comes standard with a highly efficient ESC cooling fan.ESC Features: 2s – 6s LiPo (25.2V) use in vehicles up 11.lbs with battery, ready-to-run.Smooth sensorless motor operation with included 1515-2200kv sensored** brushless motorLarge 6.5mm female motor bullet connectors (male connectors sold separately)Waterproof design ESC and splash resistant 30MM fan*Powerful 5.5 volts fixed, 8 amps Peak BECLED error codes for common error conditionsConvenient transmitter programming for nine common adjustable settingsFull compatible with the Castle Link Programming Suite to modify settings and download software updates available via Windows-based Castle Link software and USB adapter (sold separately),or the Castle Link iOS App and a B-LINK Bluetooth Adapter. (sold separately)Proudly Designed, Assembled and Supported in Olathe, KS USABacked by Castle Creations’ 1 YR WARRANTY1515-2200Kv V2 Features:Input Voltage range: 2s-6s LiPoRedesigned stator and rotor resulting in improved magnetic flux.Reduced magnetic cogging, producing less residual drag brake.Increased efficiency, resulting in lower temperatures and longer run times.Smoother start-up, reducing cogging or stuttering when starting from a stop.Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly. (see note below) High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered MagnetsOversized NMB Bearings and High-Temperature, High-Purity Copper WindingsCastle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 6.5mm Bullet ConnectorsHigh-Performance 0.2mm Steel Lamination Stacked StatorOversized, low-resistance, gold-plated solder tabsSensor board with High Quality Temperature-Stabilized SensorsT6 Aluminum CNC Machines Front/Rear End bellProudly Designed and Supported in Kansas, USA.Backed by Castle Creations’ 1-YEAR WARRANTYNote: 011-0130-00 Rotor Replacement is NOT compatible with the V2 motor. A new rotor replacement will be available in the future. Check back here for updates.Sidewinder 8 Combo includes:Sidewinder 8th ESC Castle 1515-2200Kv V2 brushless sensored* motorDrivers Ed and Quick Start GuideCastle decal sheet
