Description

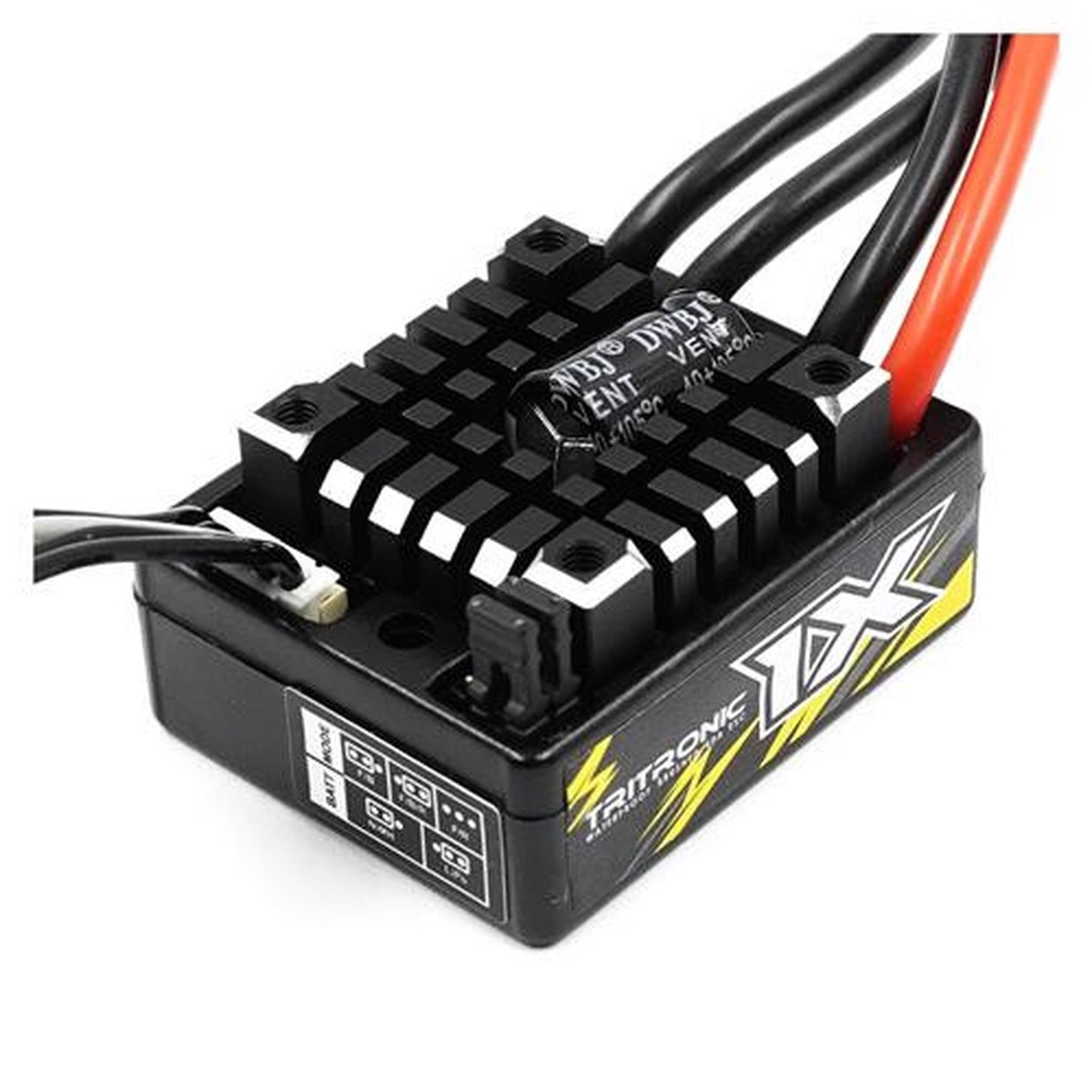

Description:Aluminum heatsink brushed ESC with a minimal footprint designed for crawlers! Easy adjust settings switching between drive modes and battery voltage cutoff with simple jumper plugs located at the front of the ESC.Feature:For: 1/10: Touring Car ( Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank )Water-proof and dust-proof, suitable for all-weather condition races.Small size with built-in capacitor module.Fwd/Rev/Br running mode fits for various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).Great current endurance capability.Great built-in BEC output capacity.Automatic throttle range calibration, easy to use.Easy to set the ESC parameters with jumpers.Multiple protections: Low voltage cut-off protection for battery / Over-heat protection / Throttle signal loss protection.Aluminium Black Heat SinkSpecification:Fwd. Cont. / Peak Current: 60A /360ARev. Cont. / Peak Current: 30A /180AVoltage Range: 2-3S Lipo or 5-9 NiMH2S Lipo or 6 NiMH-1/10 Touring Buggy Crawler Short Course Truck 540/ 550 Motor 12T Or RPM<300003S Lipo or 9 NiMH-1/10 Buggy Crawler Short Course Truck 540/550 Motor 35TOr RPM< 20000 (Suggest additional capacitor when use 3S lipo battery)Resistance: Fwd 0.001[, Rev 0.002[BEC Output: 3A/6V (Linear Mode)PWM Frequency: 1KHzDimension : 36.5*32*18mmWeight: : 39gCooling Fan: Without cooling fanInclude:Tritronic 1X ESC (1 pc)Manual
